50mm Ecotherm Eco-Cavity Partial Fill Insulation Board 1200mm x 450mm Pack of 10 (5.40m2)

50mm Ecotherm Eco-Cavity Partial Fill Insulation Board 1200mm x 450mm Pack of 10 (5.40m2)
50mm Ecotherm Eco-Cavity Partial Fill Insulation Board 1200mm x 450mm Pack of 10 (5.40m2)
50mm Ecotherm Eco-Cavity Partial Fill Insulation Board 1200mm x 450mm Pack of 10 (5.40m2)
50mm Ecotherm Eco-Cavity Partial Fill Insulation Board 1200mm x 450mm Pack of 10 (5.40m2)
SKU: IWB8484
Brand: Ecotherm

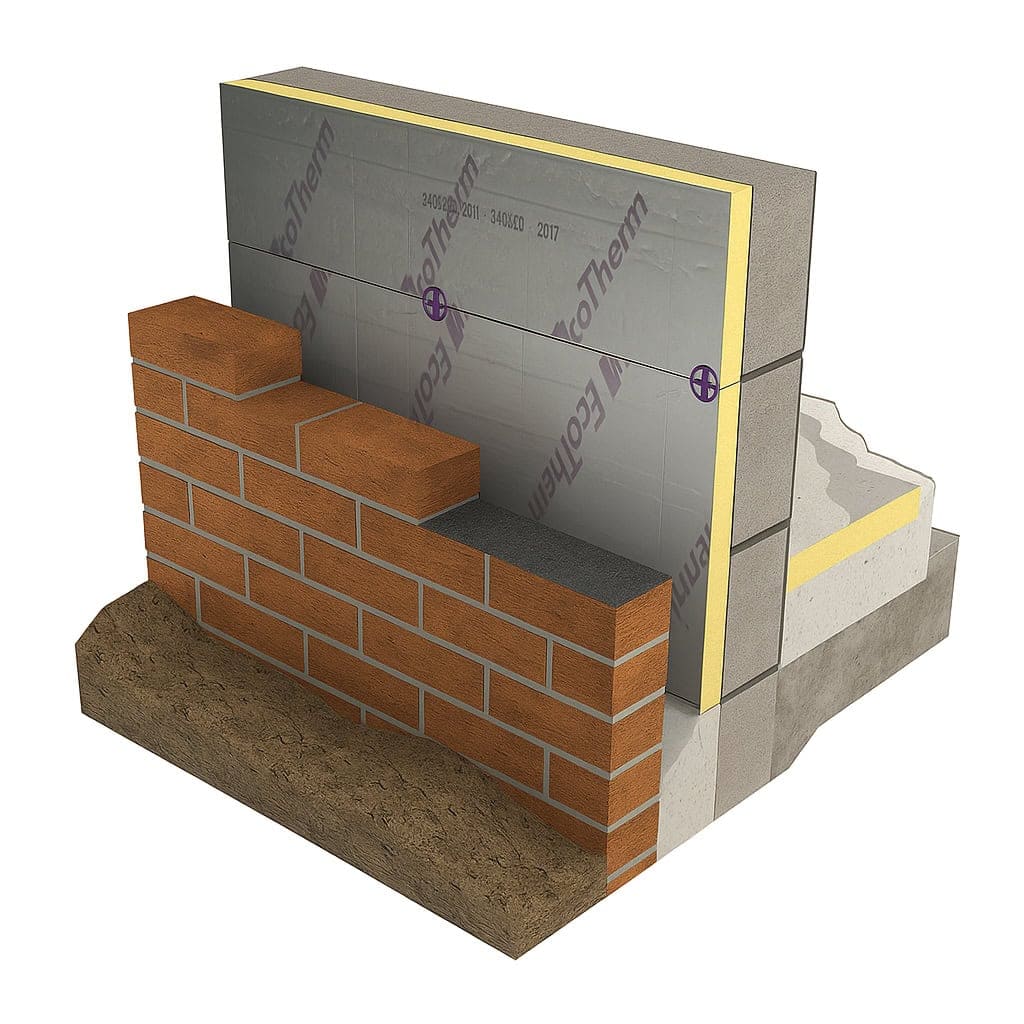

50mm Ecotherm Eco-Cavity wall insulation boards are ideal for masonry walls. They achieve high levels of thermal performance for thinner constructions whilst maintaining a clear residual air gap; effective protection against driving rain, particularly in coastal and exposed locations.

View alternative products
POA

Special Order|Backorder global lead time

Backorder global lead time

The average delivery lead time for the majority of orders is 2-3 working days from the date of your order, however, it could extend to 5 working days on rare occasions. Once the order has been placed, a member of staff will then be in contact to confirm a delivery date. A minimum order value of £200.00 ex VAT applies to our green delivery area (see the map on the Delivery Information page). Standard delivery charge of £30.00 ex VAT applies to order values between £200.00 - £499.99 ex VAT. Free delivery is available for orders above £500.00+VAT to the green areas on the map. Delivery lead times for orders outside our standard delivery may take up to 7 working days. If you are outside our standard green delivery area, please click on the “SAVE & SHARE YOUR CART” button at the cart stage, select the email option and send it to [email protected] or call us on 0203 318 7316. We will get back with a delivery quote to you shortly. test

Delivery map

See Full Transport Policy

50mm Ecotherm Eco-Cavity wall insulation boards are ideal for masonry walls. They achieve high levels of thermal performance for thinner constructions whilst maintaining a clear residual air gap; effective protection against driving rain, particularly in coastal and exposed locations.

View alternative products

  • Additional information

    Brand Ecotherm
    Amount 10 kg
    Single Product Coverage

    0.54m2
    Manufacturer Model No

    Eco-Cavity
    Total pack coverage

    5.4m2
    Thickness

    50mm
    Length

    1200mm
    Width

    450mm
    Application

    Partial Fill Cavity Wall
    Product type

    Board
    Features

    Thermal
    Fire Rating

    Euroclass F – EN 13501-1
    Compressive Stress

    140kPa at 10% compression

  • Description

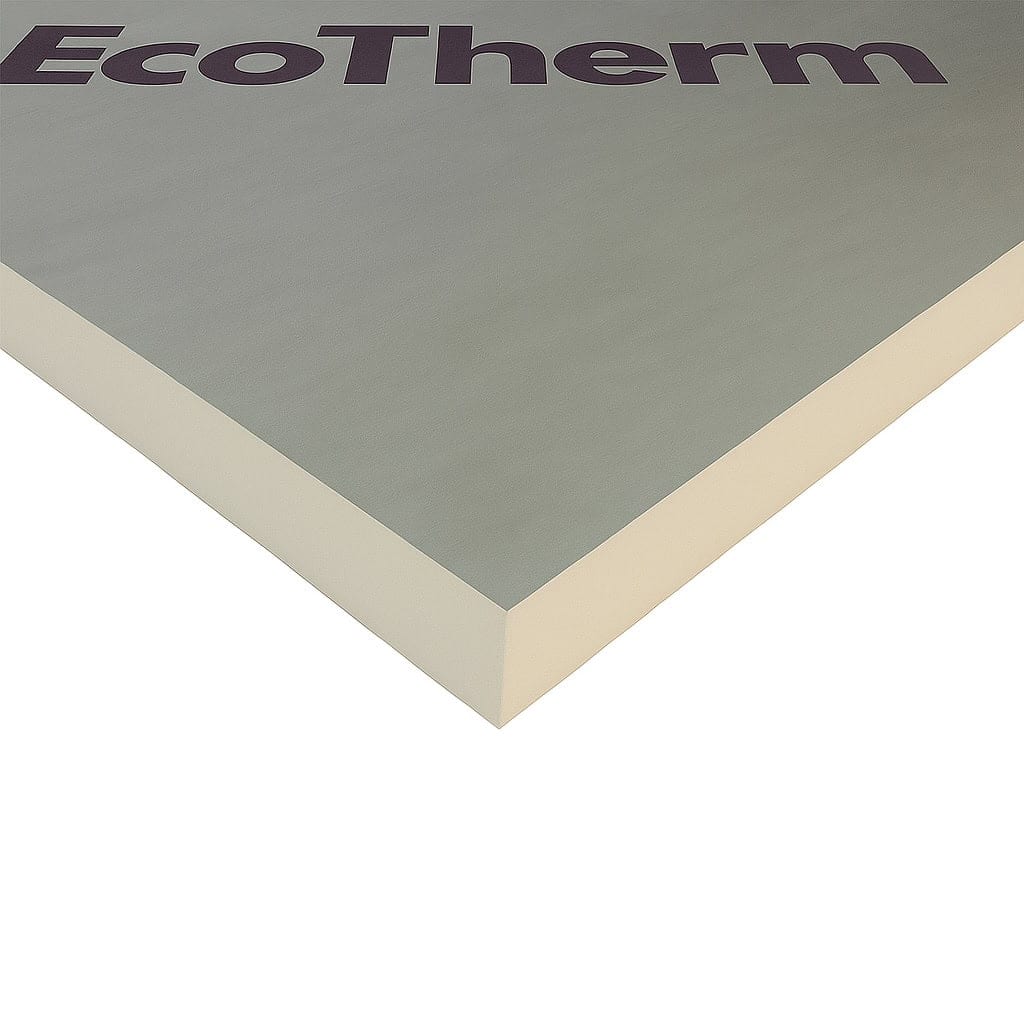

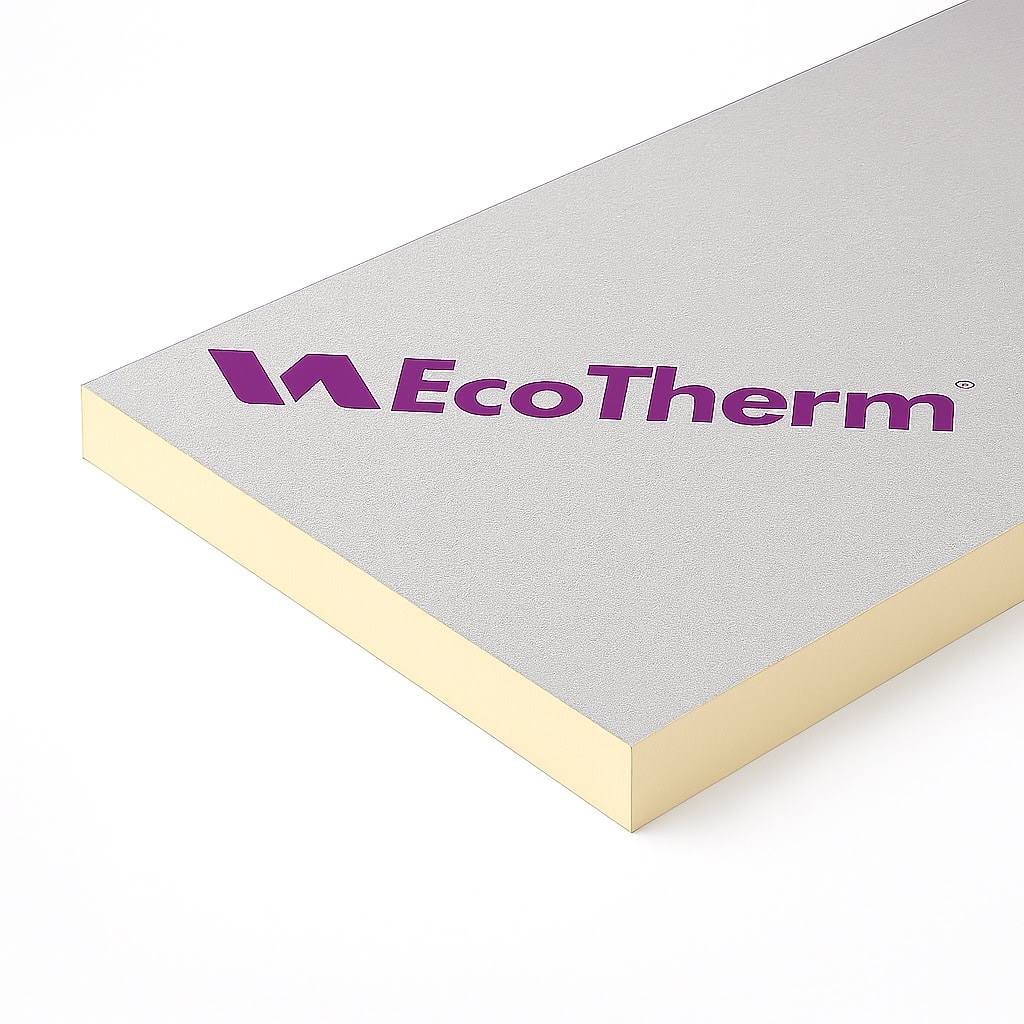

    Ecotherm Eco Cavity Insulation Board is a fibre free rigid polyisocyanurate (PIR) insulation core with aluminium foil composite to both sides. The boards are conveniently sized to co-ordinate with brick and block dimensions and allow the insertion of wall ties at the appropriate spacing.

    Key benefits

    • Good thermal performance: λ = 0.022 W/mK
    • High compressive stress
    • Compatibility with numerous waterproofing systems

  • Questions and answers of the customers

    There are no questions yet. Be the first to ask a question about this product.

    Send me a notification for each new answer.
